Equipment Included:

1 x Citronic CSD-4 Compact mixer

1 x iPod/ Laptop Cable

1 x External power Supply

Technical Details

• 2 Mic inputs via XLR with 2 band EQ

• 1 Stereo Channel with TRS Input

• Bluetooth pairing for smartphone or tablet

• 16 program, 24-bit DSP effects engine

• Individually switchable +48V phantom power




• Power supply: 5Vdc 1A (adaptor included)

• OutputLeft + Right balanced XLR




• Audio source: Bluetooth receiver

• Bluetooth version2.1 + EDR

• Power consumption max.5W

• EQ: low±15dB @ 80Hz

• EQ: high±15dB @ 12kHz

• Phantom power

• Input impedance : mic2k Ohms

• Input impedance : instrument1M Ohms

• Input impedance : line20k Ohms

• Frequency response20Hz - 20kHz (±0.5B)

• THD +N<0.03% @ 1kHz

• Dynamic range102dB

• Crosstalk : stereo92dB

• Output impedance120 Ohms

• Max. output level3Vrms

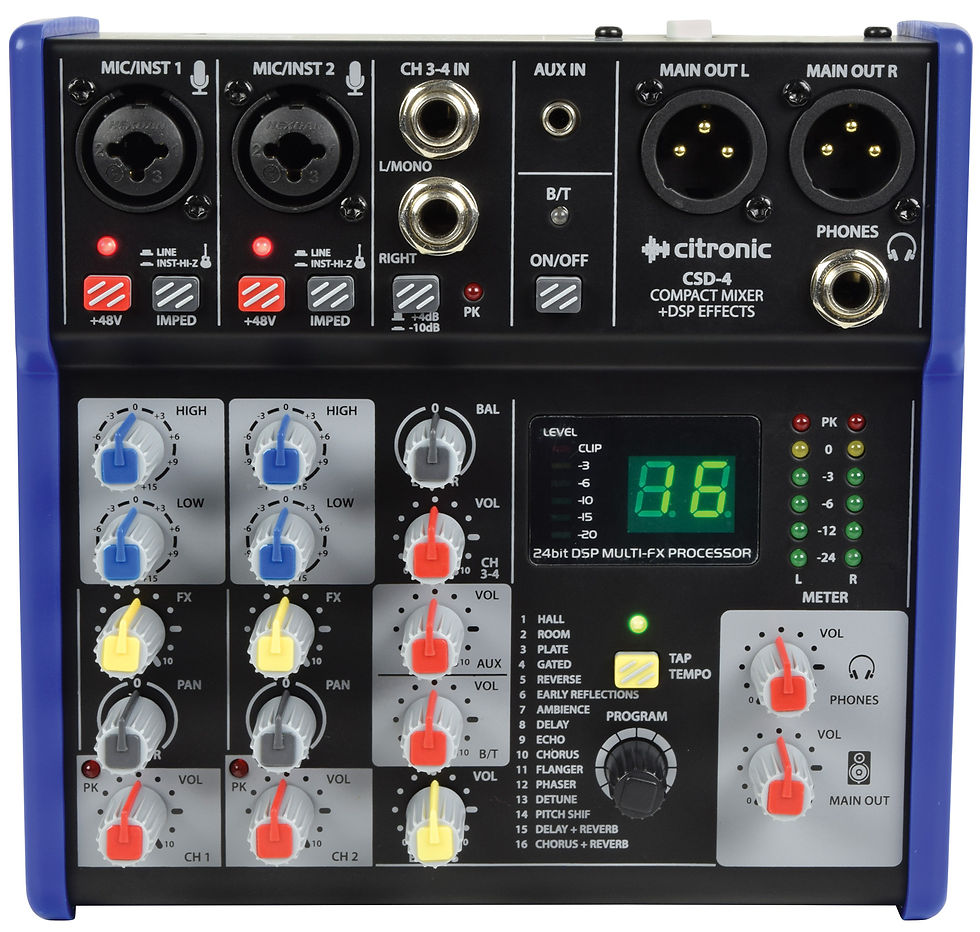

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.
